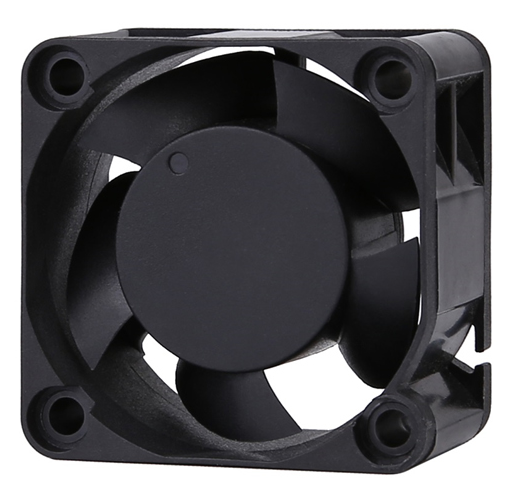

40X40X20mm B

model:MFD4020B

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)





MFD4020B

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 26 g

　

　

　

　

　

　

　

40 X 40 X 20 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD4020BD05-L 5 1.8 to 6 0.15 0.72 5000 0.151 5.34 2.65 0.104 23.8
MFD4020BD05-LM 0.17 0.84 6000 0.191 6.74 4.07 0.160 29.0
MFD4020BD05-M 0.19 0.96 6500 0.200 7.07 4.47 0.176 30.6
MFD4020BD05-H 0.22 1.08 7500 0.237 8.36 6.04 0.238 34.4
MFD4020BD05-HH 0.24 1.2 8500 0.253 8.94 6.76 0.266 36.4
MFD4020BD1-L 12 8.5 to 13.5 0.06 0.72 5000 0.151 5.34 2.65 0.104 23.8
MFD4020BD1-LM 0.07 0.84 6000 0.191 6.74 4.07 0.160 29.0
MFD4020BD1-M 0.08 0.96 6500 0.200 7.07 4.47 0.176 30.6
MFD4020BD1-H 0.09 10.8 7500 0.237 8.36 6.04 0.238 34.4
MFD4020BD1-HH 0.1 1.2 8500 0.253 8.94 6.76 0.266 36.4
MFD4020BD2-M 24 18~26.5 0.04 0.96 6500 0.200 7.07 4.47 0.176 30.6
MFD4020BD2-H 0.045 1.08 7500 0.237 8.36 6.04 0.238 34.4
MFD4020BD2-HH 0.05 1.2 8500 0.253 8.94 6.76 0.266 36.4

　

　
