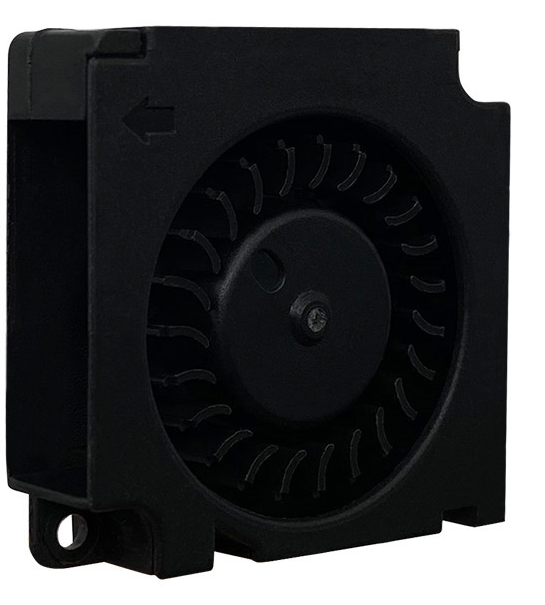

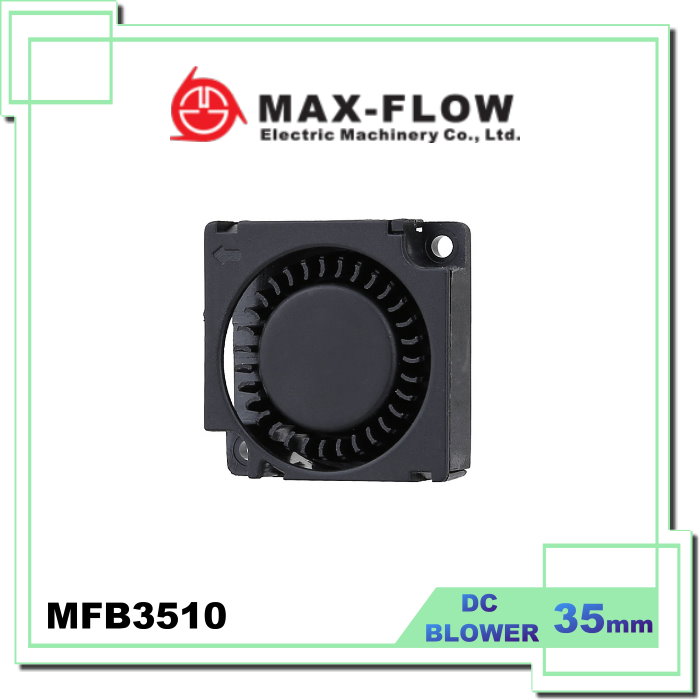

35X35X10mm 鼓風機

型號:MFB3510

直流鼓風機
35X35X10mm





MFB3510

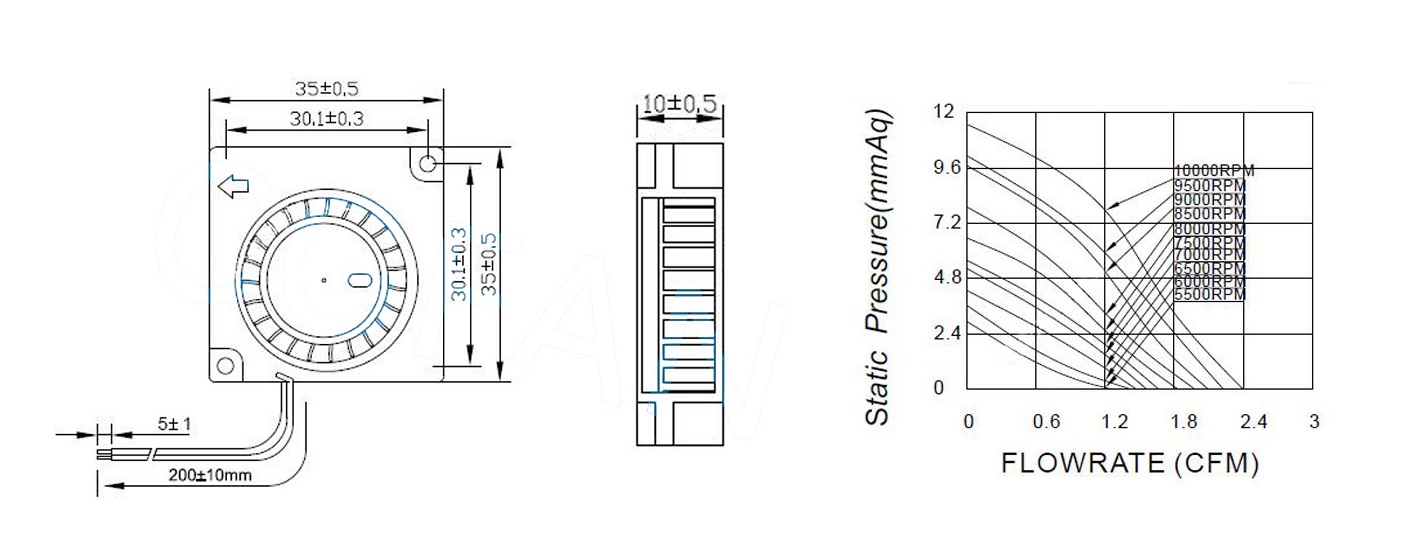

Size : 35 x 35 x 10 mm
Bearing system: Ball, Sleeve

Frame: PBT UL94V-0

Impeller: PBT UL94V-0

Operating Temp

Ball : Within -20 ~ 70°C

Sleeve: Within -10 ~ 60°C
Life Expectancy

Ball: 50,000 hours at 25°C

Sleeve: 25,000 hours at 25°C

Weight: 10 g














 MODEL

Rated Voltge

Operating Voltage Range

Rated

Current

Rated

Input Power

Speed

Maimun

Air Flow

Maimun Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

MFB3510D05-LL

5

1.8 ~ 6.8

0.1

0.5

5500

0.035

1.25

2.67

0.105

25.4

MFB3510D05-L

0.12

0.6

6000

0.04

1.42

3.62

0.143

27.5

MFB3510D05-LV

0.13

0.65

6500

0.041

1.45

4.25

0.167

29.6

MFB3510D05-M

0.14

0.7

7000

0.045

1.6

5.2

0.205

31.6

MFB3510D05-MV

0.16

0.8

7500

0.047

1.67

5.87

0.231

33.5

MFB3510D05-VM

0.18

0.9

8000

0.053

1.86

6.92

0.272

34.9

MFB3510D05-H

0.2

1

8500

0.056

1.98

8.05

0.317

36.1

MFB3510D05-HH

0.22

1.1

9000

0.061

2.14

9.1

0.358

37.4

MFB3510D05-HV

0.25

1.25

9500

0.064

2.27

10.18

0.401

39.1

MFB3510D05-VH

0.28

1.4

10000

0.067

2.38

11.58

0.456

40

MFB3510D1-LL

12

7.0 ~ 13.5

0.042

0.5

5500

0.035

1.25

2.67

0.105

25.4

MFB35101-L

0.05

0.6

6000

0.04

1.42

3.62

0.143

27.5

MFB3510D1-LV

0.054

0.65

6500

0.041

1.45

4.25

0.167

29.6

MFB3510D1-M

0.058

0.7

7000

0.045

1.60

5.2

0.205

31.6

MFB3510D1-MV

0.067

0.8

7500

0.047

1.67

5.87

0.231

33.5

MFB3510D1-VM

0.075

0.9

8000

0.053

1.86

6.92

0.272

34.9

MFB3510D1-H

0.083

1

8500

0.056

1.98

8.05

0.317

36.1

MFB3510D1-HH

0.092

1

9000

0.061

2.14

9.1

0.358

37.4

MFB3510D1-HV

0.104

1

9500

0.064

2.27

10.18

0.401

39.1

MFB3510D1-VH

0.117

1

10000

0.067

2.38

11.58

0.456

40
