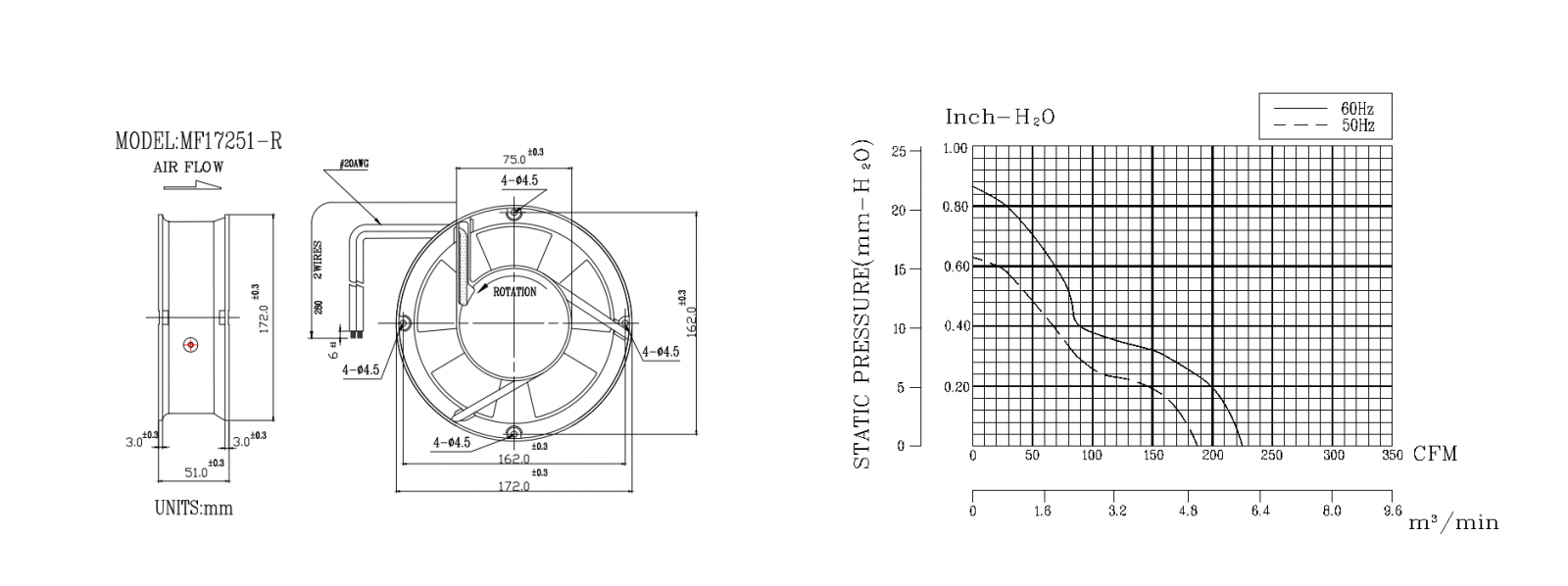

MF 17251 Round Frame





MF 17251R



尺寸:Ø 172 x 51 mm (6.77 x 5.91 x 2.01 inch)
馬達:罩極式
外框:鋁壓鑄
扇葉:PBT + 30%玻璃纖維.UL94V-0
引線:1007# 18AWG. UL/CSA
絕緣電阻:每分鐘於500VDC測試下阻抗值為100M ohm
絕緣強度:於1,500VAC 50/60Hz測試1分鐘
軸承系統:B:雙滾珠軸承 S:含油軸承
工作溫度:滾珠軸承:
-20 ~ 80°C 含油軸承:-10 ~ 56°C
工作壽命:滾珠軸承:50,000 hours at 60C
     含油軸承:20,000 hours at 45°C
淨重:920 grams

Ø172 X 51 mm




PART NO.

Bearing

Rated
Voltage

Freg

Current

input
power

Speed

Max.air
Flow

Max.air
Pressure

Noise

Weight

(V)

(Hz)

(A)

(W)

(R.P.M)

CFM

INH2O

dB-A

grams

17251RA1HSAT(L)
17251RA1HBAT(L)

Sleeve
Ball

110/120

50/60

0.55/0.48

45/52

2800/3100

190/220

0.55/0.72

53/59

920

17251RA2HSAT(L)
17251A2HBAT(L)

Sleeve
Ball

220/240

50/60

0.35/0.28

44/51

2800/3100

190/220

0.55/0.72

53/59

920

17251RA1DVHSA(L)
17251RA1DVHBA(L)

Sleeve
Ball

110/120

50/60

0.55/0.48

45/52

2800/3100

190/220

0.55/0.72

53/59

920

17251RA2DVHSA(L)
17251RA2DVHBA(L)

Sleeve
Ball

220/240

50/60

0.35/0.28

44/51

2800/3100

190/220

0.55/0.72

53/59

920
