MFC 28080

型號:MFC 28080







MFC28080





Size: 280 x 280 x 80mm
Frame: Die cast aluminum
Impeller:Steel-sheet metal fan blades
Ambient emperature Range: -25℃ ~ +85℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Double NSK Ball bearings are inner set
Motor Structure: External rotor inducted by a running cap acitor Motor protection: Thermal Protected
Termination: PA-10
Protection Grade: IP55
Package: 2900g / PC

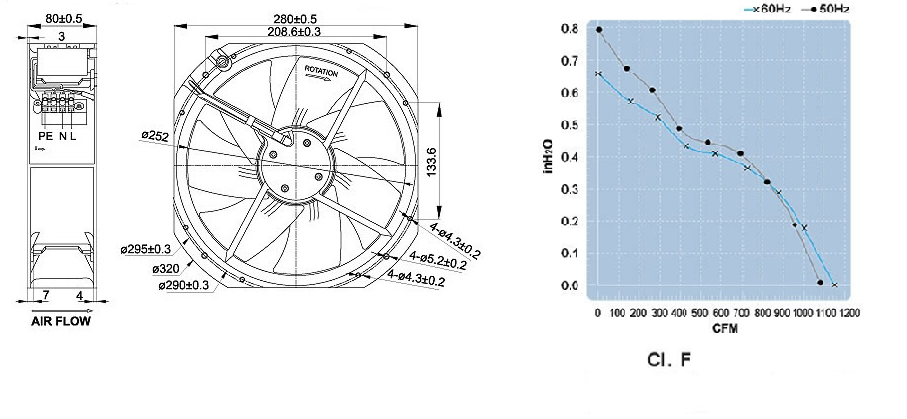

280 X 280 X 80 mm







PART NO. Bearing Rated Freg Current input Speed Max.air Max.air Noise Weight
Voltage power Flow Pressure
(V) (Hz) (A) (W) (R.P.M) CFM INH2O dB-A grams
28080A1H Ball 110 / 120 50 / 60 0.97/1.36 110/155 2,600/2,900 1060 / 1150 0.65/0.78 68/70 2900
28080A2H Ball 220 / 240 50 / 60 0.51/0.7 115/165 2,500/2,650 1060 / 1150 0.65/0.75 68/70 2900
